Tailor-Made Cables
12 CORES SINGLE MODE FAN OUT CORD, LENGTH 30M, NO CONNECTOR AT ONE SIDE, SC/UPC (DIAMETER 2MM) 1.5M LENGTH LSZH
Location: Macau
Quantity: 270 pieces
Item number: SG-FT-12
Date: In May 2026
Each connector is labelled with a number tag for easy identification, ensuring effective cable management. This singlemode G657A1 fiber optics features a 2 mm cable diameter, well-suited for various applications including control cable setups. The cable jacket is made from Low Smoke Zero Halogen materials, providing safety and compliance. Testing adheres to the FT4 vertical flame test standards. For enhanced organization, it can be paired with an ethernet faceplate and housed within a fibre enclosure.
OUTDOOR MULTI PAIR ARMOR CONTROL CABLE of Hong Kong International Airport
Location: Passenger Terminal 1, HK International Airport
Quantity: 3 km
Item: SG 803
Date: In June 2022
The control cable was constructed with Individual Shield (IS), Braid: Aluminium Magnesium alloy wires, Drain wire, and Overall Shield (OS). Additionally, it features a steel tape metallic armor covered with an MDPE all-weather jacket, ideal for outdoor direct buried cable installation.
Outdoor armour 27 x 2.5mm sq screen control cable installed at Hong Kong International Airport
SIGNALMAX.NET outdoor SWA armour 27 x 2.5 mm² control cable was awarded to supply PCCW, which is setting up the control network for efficient cable management at Hong Kong International Airport.
Location: Chek Lap Kok Telephone Exchange
Quantity: 1 km
Item Number: SG 270B
Date: Sept 2017
Standards:
Fire Resistance – IEC 60332-3 / EN 50266
Smoke Emission – IEC 61034 / EN 50268
Corrosive and Acid Gas Emission – IEC 60754 / EN 50267-2-2
Profibus DP Basic LSHF cable for Dragages – Bouygues Joint Venture
Location: DRAGAGES – BOUYGUES JOINT VENTURE site in Hong Kong
Quantity: 3,000 meters
Date: In April 2017
Dragages is recognised as a pioneer in its industry, leading the way in innovative construction techniques and technologies across its civil, building, electrical, and mechanical divisions, while also emphasizing effective cable management solutions.
In April 2017, SIGNALMAX.NET supplied 3000 meters of DP 1 Pair AWG 18 control cable to the DRAGAGES – BOUYGUES JOINT VENTURE. This control cable successfully passed the mechanical and electrical tests outlined in the tender, confirming its reliability for various applications. It is halogen-free, flame resistant, and UV-resistant, with a limited segment length according to the PROFIBUS-Net Manual, and it maintains performance in environments with limited oil and grease resistance.
Additionally, this product is silicon-free and complies with standards including EN 50170 part 8-2, cable type A, IEC 61158, and IEC 61784, making it an excellent choice for integration with infrastructure that requires robust connectivity, such as ethernet faceplates or fibre enclosures.
1 Pair Screened Intraoffice Jumper Cable for Telecommunication Exchanges
Location: Hong Kong
Quantity: over 500,000 meters
Date: From 2021 to 2025
1 pair screened intraoffice jumper cable was constructed with solid wire of plain annealed high conductivity copper conductor, Individual Shield (IS), Drain wire, and Overall Shield (OS). Additionally, it features a polyester tape covered with a LSZH all-weather jacket, ideal for stable PCM signal transmission where electromagnetic interference control, signal integrity and dependable electrical performance are required.
Characteristic impedance: 100 ohms +/- 20% ( From frequency between 772 kHz to 3156 kHz )
Crosstalk Attenuation at a resistance 110 ohms: over 85 dB between 10 kHz and 1.0 MHz.
CT LOOP. 1×6MMSQ N1× 1G1 Electronic Signalling Cable of Mass Transit Railway
Location: The Mass Transit Railway System in Kowloon Bay
Quantity: 100,000 meters
Date: In June 2022
The electrical signalling cable was constructed with an annealed standard copper class 2 IEC 60228 with 1 x 6MM SQ, fire resistant Mica tape with 120% coverage, XLPE (cross-linked polyethylene), LSZH jacket.
Cable passed the tests required by MTRC engineers:
1. Max conductor short circuit temperature: 250 Celsius (Duration <=5 Seconds)
2. Pervious Rate to Light, not less than 60%
3. PH Value, Not Less Than : 4.3 3. Conductivity, Not More Than 10 us/mm Fire-Resistant And Flame-Retardant
4. Current Carrying Capacity For Cable Laid In Ground Temperature 25 Celsius : 66A
Tailor-Made Cabinets, Enclosures and Accessories
SIGNALMAX.NET HA CABINET WITH SCREW TYPE COVER, D-RAIL, BACKPLATE & FAN
Location: Hong Kong
Quantity: over 500 pieces
(orders with different dimension and tailor-made ventiliation design)
HA Cabinet have been developed to meet the changing needs of smart home. A smart home is a house in which anything electric, such as appliances, lights, locks, cameras, televisions, and other objects, are connected through the internet to share information. Having a connected network of devices means that the builder enables the users to control aspects of home with their voice or the touch of a button.
The system is installed in metal cases that organize the control modules in the building. The backplate is fixed by 4 metal screws. The user can take it out for installing control modules on the plate and reinstalling into the unit. The cables pass through the back of the case without difficulty. Ventilation fans are provided to reduce the heat inside the case.

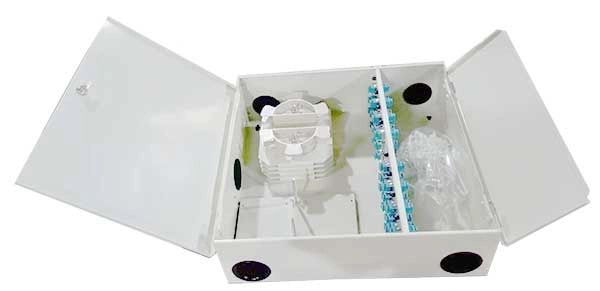

Telecom Network Wall Mount Fiber Enclosure
Location: Hong Kong Fiber Network
Quantity: More than 3,000 sets
Date: From 2019 to now
The wall mount fiber enclosure was constructed with the following features:
1) Fiber panel for fitting SC UPC couplers under ITU standard
2) A different set of locks is used for right hand side door and left hand side door
3) The splice cassette is stackable
4) Rubber grommet included to seal all cable entry holes
5) Cable saddles are equipped for cable management and routing inside the box
6) Fiber splitter tray is included
Wall Mount insulation-displacement connector IDC box
Location: Public Switched Telephone Network in Hong Kong
Quantity: 500 sets
Date: 2013 to now ( will retire soon )
IDC ( Insulation-Displacement Connector ) termination enclosure supports the Insulation-Displacement Connector as its smallest functional element that is used for connecting, disconnecting, switching and earthing connections in telecommunications and data applications.
The contact as a special feature of the system ensures the highest degree of contact safety under the most severe conditions even after years of use. A durable, gas tight connection is formed between contact and wire – resistant to corrosion and mechanical stress.
There are built-in structure to enable multi-pair cables incoming and outcoming in an organised way.
Cable jumper rings are planted surrounding the 10 pair back mount frame for LSA-PLUS connectivity.
Mobile Trolley
Location: MTRC Hong Kong
Quantity: 1 set (tailor-made)
Date: July 2020
SIGNALMAX.NET created a mobile trolley for displaying the structure of Mass Transit Railway station (MTR Hong Kong) in July 2020. Our engineers designed this trolley with an emphasis on effective cable management, incorporating features for control cable organization. It combined metal sheet with special painting, acrylic fibre, and ventilation fans to optimize its functionality. The trolley includes a computer ventilator, a venting plate, and a metal sheet with a Din-Rail installed at the center. Additionally, it has four wheels for mobility, an acrylic window for an LCD panel, and an ethernet faceplate for connectivity. The painting is based on a tailor-made Pantone color, and there's an internal stand to securely hold the LCD monitor inside the trolley alongside a fibre enclosure for added protection.
Ethernet faceplate with testing circuit
Location: Hong Kong Fixed Telecom Network
Quantity: 8,000 sets
Date: From 2021
Socket designed for HGC network with effective cable management in mind. This British type ethernet faceplate conforms to the RJ45 UK style universal standards as per ANSI/TIA-568.0-D. It is compatible with BS 4662 and BS 5733 electrical boxes, supporting Gigabit ethernet speeds of up to 1000 Mbps based on a bandwidth of 350 MHz, making it an ideal choice for reliable control cable setups and fibre enclosure applications.
